| Ordering Part No.
= Model +
Voltage |
| Item |
Model |
List Price |
Picture |
Port Size
|
Voltage
|
Cv/
Orifice
|
Features
|
Valve Symbol/
Catalog |
| 1 |
2P025 1/8
|
$21.23 |
 |
1/8"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
|
Cv=0.23
Orifice:2.5mm
|
Service: Air
2 Way Direct Acting
Normally Closed
22 SCFM @100 PSI
Pressure: Vacuum to 115 PSI
Temperature: 32 to 50 °F
Engineering Nylon Plastic Body
Response Time <20msec
Coil Power 3 to 6.5W
|
Download Catalog
2P025 PDF
|
| 1A |
2P025 1/4
|
$21.23 |
1/4"NPT
|
| 2 |
2P025 1/8S
|
$23.43 |
|
1/8"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
|
Cv=0.23
Orifice:2.5mm
|
Service: Water, Air,
Liquid
2 Way Direct Acting
Normally Closed
22 SCFM @100 PSI
Pressure: Vacuum to 115 PSI
Temperature: 32 to 50 °F
Engineering Nylon Plastic Body
Response Time <20msec
Wetted Surfaces: Nylon and Stainless Steel
Coil Power 3 to 6.5W
|
Download Catalog
2P025 PDF
|
| 2A |
2P025 1/4S
|
$23.43 |
1/4"NPT
|
| 3 |
2P025 1/8A
|
$24.53 |
 |
1/8"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
E=Explosion Proof Coil
|
Cv=0.15
Orifice:2mm
|
Service: Water, Air,
Liquid
2 Way Direct Acting
Normally Closed
20 SCFM @100 PSI
Pressure: Vacuum to 115 PSI
Temperature: 32 to 50 °F
Engineering Acetal Plastic Body
Response Time <20msec
Wetted Surfaces: Acetal and Stainless Steel
Coil Power 3 to 6.5W
|
Download Catalog
2P025A PDF
|
| 3A |
2P025 1/4A |
$24.53 |
1/4"NPT
|
| 3B |
3P010 1/8A
|
$25.62 |
1/8"NPT
|
Cv=0.05
Orifice:1mm
|
Service: Water, Air, Liquid
3 Way Direct Acting
Normally Closed
20 SCFM @100 PSI
Pressure: 0acuum to 60 PSI
Temperature: 32 to 50 °F
Engineering Acetal Plastic Body
Response Time <20msec
Wetted Surfaces: Acetal and Stainless Steel
Coil Power 3 to 6.5W
|
 |
| 3C |
3P010 1/4A |
$25.62 |
1/4"NPT
|
| 4 |
2T060-1/4
|
$294.94 |
 |
1/4"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
|
Cv=2.8
Orifice:6mm
|
Normally Closed, Direct Acting 2 Way.
Teflon Valve;
Fluid
Temperature:-20°C to 180°C
Valve Body: PTFE
Seal: FKM
Wetted Surfaces: PTFE, FKM
Operating Pressure: 0 to 22 PSI;
Compatible Fluid: Corrosive fluid & gas, acid, alkali, etc.
|
|
| 4A |
2T060-3/8
|
$294.94 |
3/8"NPT
|
| 4B |
2T060-1/2
|
$294.94 |
1/2"NPT
|
| 5 |
2V025 1/8
|
$21.67 |
 |
1/8"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
E=Explosion Proof Coil
|
Cv=0.23
Orifice:2mm
|
Service: Air
2 Way Direct Acting
Normally Closed
22 SCFM @100 PSI
Pressure: Vacuum to 115 PSI
Temperature: -4 to 140 °F
Anodized Aluminum Body
Response Time <20msec.
Coil Power 3 to 6.5W
|
Download Catalog
2V025 PDF
|
| 5A |
2V025 1/4
|
$21.67 |
1/4"NPT
|
| 6 |
2W025-1/4
|
$31.68 |
 |
1/4"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
E=Explosion Proof Coil
|
Cv=0.23
Orifice:2.5mm
|
Service:
Air, Liquid, Oil, Water
2 Way Direct
Acting
Normally Closed
Brass Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C)
(with NBR Seal)
5 to 248 °F (-15 TO 120 °C)
(with Viton Seal)
Pressure: Vacuum to 150 PSI
Response Time <20msec.
Coil Power 13 to 20W
|
Download Catalog
2W010-040.PDF
|
| 6A |
2W035-1/4
|
$36.07 |
1/4"NPT
|
Cv=0.5
Orifice:3.5mm
|
| 6B |
2W040-3/8
|
$39.35 |
3/8"NPT
|
Cv=0.6
Orifice:4mm
|
| 7 |
2S012-1/8A
|
$32.70 |
 |
1/8"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=0.05
Orifice:1.2mm |
Service: Air, Liquid, Oil, Water
2 Way Direct Acting
Normally Closed
Stainless Steel Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C)
Seal: NBR
Pressure: 0 to 200PSI;
Response Time <20msec.
Coil Power 3 to 6.5W
|
Download Catalog
2S012-020.PDF |
| 7A |
2S012-1/4A
|
$32.70 |
1/4"NPT
|
| 7B |
2S020-1/8A
|
$32.70 |
 |
1/8"NPT
|
Cv=0.23
Orifice:2.5mm |
Service: Air, Liquid, Oil, Water
2 Way Direct Acting
Normally Closed
Stainless Steel Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C)
Seal: NBR
Pressure: Vacuum to 150 PSI;
Response Time <20msec.
Coil Power 3 to 6.5W
|
| 7C |
2S020-1/4A
|
$32.70 |
1/4"NPT
|
| 7D |
3S012-1/8A
|
$35.99 |
|
1/8"NPT
|
Cv=0.05
Orifice:1.2mm |
Service: Air, Liquid, Oil, Water
3 Way Universal Direct Acting
Normally Closed: Vacuum to 60 PSI
Normally Open: Vacuum to 150 PSI
Diverter Valve 1 input to 2 output: Vac.- 150 PSI
Stainless Steel Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C)
Seal: NBR
Response Time <20msec.
Coil Power 3 to 6.5W
|
Download Catalog
3S012-020PDF |
| 7E |
3S012-1/4A
|
$35.99 |
1/4"NPT
|
| 8 |
2H012-1/8
|
$64.80 |
 |
1/8"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
|
Cv=0.05
Orifice:1.2MM
|
Service:
Air, Water, Liquid
2 Way Direct Acting
Normally Closed
Stainless Steel Solenoid Valve
Temperature:
14 -176 °F (-20 TO 85 °C)
Seal: PTFE
Pressure: 0 to
1000 PSI
Response Time <20msec.
Coil Power 14W
|
Download Catalog
2H012.PDF
3D PDF MODEL
|
| 9 |
2S025-1/8H
|
$32.70 |
 |
1/8"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
Grommet (Lead Wires Electrical connections)
|
Cv=0.23
Orifice:2.5mm
|
Service: Air, Liquid, Oil, Water
2 Way Direct Acting
Normally Closed
Stainless Steel Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C)
Seal: NBR
Pressure: 0 to 150 PSI; 110-220AC
0
to 120 PSI; 12-24V
Response Time <20msec.
Coil Power 10-14W
|
Download Catalog
2S025-H.PDF
|
| 9A |
2S025-1/4H
|
$32.70 |
1/4"NPT
|
| 10 |
2S025-1/4
|
$35.35 |
|
1/4"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=0.23
Orifice:2.5mm
|
Service: Air, Liquid, Oil, Water
2 Way Direct Acting
Normally Closed
Stainless Steel Valve Body
Temperature:
14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F with Viton Seal;
Pressure:
025: Vacuum to 200 PSI
035: Vacuum to 170 PSI
040: Vacuum to 150 PSI
050: Vacuum to 80 PSI
Response Time <20msec.
Coil Power 13 to 20W
|
Download Catalog
2S010-050.PDF
|
| 10A |
2S035-1/4
|
$38.64 |
1/4"NPT |
Cv=0.5
Orifice:3.5mm
|
| 10C |
2S040-3/8
|
$49.05 |
3/8"NPT
|
Cv=0.6
Orifice:4mm
|
| 11 |
2S050-1/4-V
|
$54.81 |
1/4"NPT
|
Cv=1.0
Orifice: 5mm
|
| 12 |
2S050-3/8
|
$49.05 |
3/8"NPT
|
Cv=1.0
Orifice: 5mm
|
| 13 |
3S020-1/4-V
|
$67.98 |
|
1/4"NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Orifice:2mm
|
Service: Air, Liquid,
Oil, Water
3 Way Direct
Acting
Normally Closed
or Open
Valve Body: Stainless Steel
Seal: Viton
Temp.: 5 -248 °F
(-15 to120 °C)
Pressure:
Vacuum to 100 PSI (2mm orifice)
Vacuum to 60 PSI (3.5mm orifice)
Response Time <20msec.
Coil Power 13 to 20W
|
Download Catalog
3S010-035.PDF
|
| 14 |
3S035-1/4-V
|
$67.98 |
Cv=0.5
Orifice:3.5mm
|
| 15 |
2W160-3/8
|
$68.91 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=4.8
Orifice:16mm
|
Service: Air, Liquid,
Oil, Water
Direct Lift Diaphragm
Normally Closed
Two Way Diaphragm
Brass Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C), with NBR Seal;
5 to 248 °F (-15 TO
120 °C), with Viton Seal;
Pressure:
Vacuum to 150 PSI
AC Coil
Vacuum to 100 PSI DC Coil
Coil Power 13 to 20W
|
Download Catalog
2W160-500.PDF
|
| 16 |
2W160-1/2
|
$73.85 |
1/2" NPT
|
Cv=4.8
Orifice:16mm
|
| 17 |
2W200-3/4
|
$79.88 |
3/4" NPT
|
Cv=7.6
Orifice:20mm
|
| 18 |
2W250-1
|
$101.64 |
1" NPT
|
Cv=12
Orifice:25mm
|
| 19 |
2W350-1 1/4
|
$195.04 |
1-1/4" NPT
|
Cv=24
Orifice:35mm
|
| 20 |
2W400-1 1/2
|
$224.45 |
1-1/2" NPT
|
Cv=29
Orifice:40mm
|
| 21 |
2W500-2
|
$314.81 |
2"
NPT
|
Cv=48
Orifice:50mm
|
| 22 |
2S160-3/8
|
$119.19 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=4.8
Orifice:16mm
|
Service:
Air, Liquid, Oil, Water
Direct Lift Diaphragm
Normally Closed
Two Way Diaphragm
304 Stainless Steel Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C), with NBR Seal;
5 to 248 °F (-15 TO 120 °C), with Viton Seal;
Pressure:
Vacuum to 150 PSI AC Coil
Vacuum to 100 PSI DC Coil
Coil Power 13 to 20W
|
Download Catalog
2S160-500.PDF
|
| 23 |
2S160-1/2
|
$119.19 |
1/2" NPT
|
Cv=4.8
Orifice:16mm
|
| 24 |
2S200-3/4
|
$135.17 |
3/4" NPT
|
Cv=7.6
Orifice:20mm
|
| 25 |
2S250-1
|
$151.92 |
1" NPT
|
Cv=12
Orifice:25mm
|
| 26 |
2S350-1 1/4
|
$276.19 |
1-1/4" NPT
|
Cv=24
Orifice:35mm
|
| 27 |
2S400-1 1/2
|
$294.66 |
1-1/2" NPT |
Cv=29
Orifice:40mm
|
| 28 |
2S500-2
|
$460.34 |
2"
NPT
|
Cv=48
Orifice:50mm
|
| 30 |
2L170-1/2
|
$149.62 |
|
1/2" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
|
Cv=4.8
Orifice:17mm
|
Service: Air, Liquid,
Oil, Steam, Water
Pilot
Piston
Normally Closed Two Way
Brass Solenoid Valve
for Air, Liquid & Steam
Temperature:
23 to 356 °F
(-5 TO
180 °C)
Seal: PTFE
Pressure: 7 to 232 PSI
Vacuum Reverse Flow Direction
Installation: Valve Vertical, Horizontal Flow
Coil Power 30 to 40W
|
 Download Catalog
2L170-500.PDF
|
| 31 |
2L170-3/4
|
$157.94 |
3/4" NPT
|
Cv=4.8
Orifice:17mm
|
| 32 |
2L200-1
|
$184.06 |
1"
NPT
|
Cv=12
Orifice:20mm
|
| 33 |
2L300-1 1/2
|
$327.50 |
1
1/2" NPT
|
Cv=29
Orifice:40mm
|
| 34 |
2L500-2
|
$374.68 |
2"
NPT
|
Cv=48
Orifice:50mm
|
| 35 |
2WO040-3/8
|
$65.44 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
|
Cv=0.6
Orifice:5mm
|
Service: Air, Liquid,
Oil, Water
2 Way Direct Acting
Normally Open
Brass Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C), with NBR Seal;
5 to 248 °F (-15 TO 120 °C), with Viton Seal;
Pressure:
Vacuum to 90 PSI
Coil Power 30W
|
|
| 36 |
2WO160-3/8
|
$105.51 |
 |
3/8"
NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
|
Cv=4.8
Orifice:16mm
|
Service: Air, Liquid,
Oil, Water
Direct Lift Diaphragm
Normally Open
Two Way Diaphragm
Brass Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C), with NBR Seal;
5 to 248 °F (-15 TO 120 °C), with Viton Seal;
Pressure:
Vacuum to 90 PSI
Option:
Vacuum to 150 PSI
Coil Power 30 W to 38W
|
Download Catalog
2WO160-500.PDF
|
| 37 |
2WO160-1/2
|
$105.51 |
1/2" NPT
|
Cv=4.8
Orifice:16mm
|
| 38 |
2WO200-3/4
|
$115.06 |
3/4"
NPT
|
Cv=7.6
Orifice:20mm
|
| 39 |
2WO250-1
|
$134.28 |
1"
NPT
|
Cv=12
Orifice:25mm
|
| 40 |
2WO350-1 1/4
|
$236.18 |
1 1/4" NPT
|
Cv=24
Orifice:35mm
|
| 41 |
2WO400-1 1/2
|
$282.63 |
1 1/2" NPT
|
Cv=29
Orifice:40mm
|
| 42 |
2WO500-2
|
$382.37 |
2"
NPT
|
Cv=48
Orifice:50mm
|
| 43 |
2SO160-3/8
|
$137.10 |
 |
3/8"
NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
|
Cv=4.8
Orifice:16mm
|
Service: Air, Liquid,
Oil, Water
Direct Lift Diaphragm
Normally Open
Two Way Diaphragm
304 Stainless Steel Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C), with NBR Seal;
5 to 248 °F (-15 TO 120 °C), with Viton Seal;
Pressure:
Vacuum to 90 PSI
Option:
Vacuum to 150 PSI
Coil Power 30 W to 38W
|
Download Catalog
2SO160-500.PDF
|
| 44 |
2SO160-1/2
|
$149.59 |
1/2" NPT
|
Cv=4.8
Orifice:16mm
|
| 45 |
2SO200-3/4
|
$174.56 |
3/4" NPT
|
Cv=7.6
Orifice:20mm
|
| 46 |
2SO250-1
|
$274.21 |
1"
NPT
|
Cv=12
Orifice:25mm
|
| 47 |
2SO350-11/4
|
$326.98 |
1 1/4" NPT
|
Cv=24
Orifice:35mm
|
| 48 |
2SO400-1 1/2
|
$380.20 |
1
1/2" NPT
|
Cv=29
Orifice:40mm
|
| 49 |
2SO500-2
|
$518.46 |
2"
NPT
|
Cv=48
Orifice:50mm
|
| 50 |
2V130-3/8
|
$67.75 |
 |
3/8" NPT |
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=4.8
Orifice:13mm
|
Service: Air, Liquid, Oil, Water
Pilot Operated Diaphragm
Normally Closed
Two Way Diaphragm
Brass Solenoid Valve
Temperature:
14 -176 °F (-10 TO 80 °C), with NBR Seal;
5 to 248 °F (-15 TO 120 °C), with Viton Seal;
Pressure: 5 to115PSI
Option: 5 to 150 PSI
Service: Air, Water, Oil, Gas
Coil
power 3 to 6.5W
|
Download Catalog
2V130-250.PDF
3D PDF MODEL
|
| 51 |
2V130-1/2
|
$67.75 |
1/2" NPT |
Cv=4.8
Orifice:13mm
|
| 52 |
2V250-3/4
|
$130.65 |
3/4" NPT
|
Cv=12
Orifice:25mm
|
| 53 |
2V250-1
|
$130.65 |
1" NPT
|
Cv=12
Orifice:25mm
|
| 54 |
200C-1-E
|
$98.85 |
Explosion Proof Coil
for
2V130-250 (VALVE BODY NOT INCLUDED)
|
12VDC
|
 |
| 55 |
200C-2-E
|
24VDC
|
| 56 |
200C-2A-E
|
24VAC
|
| 57 |
200C-3-E
|
110VAC(50/60Hz)
|
| 58 |
200C-4-E
|
220VAC (50/60Hz)
|
| 59 |
2P160-1/2
|
$51.21 |
 |
1/2" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
|
Cv=4.8
Orifice:16mm
|
2 Way
Direct Lift Diaphragm
Normally Closed
Two Way Diaphragm
Engineered Nylon Solenoid Valve
Temperature:
32-122°F (0-50°C)
Seal: NBR
Pressure: Vacuum to 90 PSI
Service: Air, Liquid,
Oil, Water
Vacuum Reverse Flow Direction
Coil Power 30W
|
Download Catalog
2P160-250.PDF
|
| 60 |
2P200-3/4
|
$60.91 |
3/4" NPT
|
Cv=7.6
Orifice:20mm
|
| 61 |
2P250-1
|
$83.54 |
1" NPT
|
Cv=12
Orifice:25mm
|
| 62 |
2PO160-1/2
|
$74.25 |
 |
1/2" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
|
Cv=4.8
Orifice:16mm
|
2 Way
Direct Lift Diaphragm
Normally Open
Engineered Nylon Solenoid Valve
Temperature:
32-122°F (0-50°C)
Seal: NBR
Pressure: Vacuum to 90 PSI
Service: Air, Liquid,
Oil, Water Vacuum Reverse Flow Direction
Coil Power 30W
|
Download Catalog
2PO250.PDF
|
| 63 |
2PO200-3/4
|
$83.96 |
3/4" NPT
|
Cv=7.6
Orifice:20mm
|
| 64 |
2PO250-1
|
$106.58 |
1" NPT
|
Cv=12
Orifice:25mm
|
| 65 |
2MS120-3/8
|
$159.59 |
 |
3/8"
NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=4.5
Orifice:12mm
|
2 Way, Pilot Piston, Normally
Closed
Body; 304 Stainless Steel
Seals: PTFE
Operating Temp -6 to 356
°F
(-20 TO 180 °C)
Operating Pressure:
Standard: 6 to 230 PSI
Options: Medium: 6 to 580 PSI (DC)
Medium: 6 to 725 PSI (AC)
High: 87 to 1160 PSI
Coil: Class H, IP65, 20W, CE
Service: Air,
Liquid, Steam
Coil Power 13 to 20W
|
Download Catalog
2MS120-500.pdf
|
| 66 |
2MS150-1/2
|
$159.59 |
1/2" NPT
|
Cv=45
Orifice:15mm
|
| 67 |
2MS200-3/4
|
$191.18 |
3/4" NPT
|
Cv=7.6
Orifice:20mm
|
| 68 |
2MS250-1
|
$244.39 |
1"
NPT
|
Cv=12
Orifice:25mm
|
| 68A |
2MS320-1 1/4
|
$345.80 |
1
1/4"
NPT
|
Cv=22
Orifice:320mm
|
| 68B |
2MS400-1 1/2
|
$363.25 |
1 1/2"
NPT
|
Cv=30
Orifice:40mm
|
| 68C |
2MS500-2
|
$563.59 |
2"
NPT
|
Cv=48
Orifice:50mm
|
| 69 |
2MSO120-3/8
|
$195.34 |
|
3/8"
NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110AC
4 =220VAC
(50/60Hz |
Cv=4.5
Orifice:12mm
|
2 Way, Pilot Piston, Normally Open
Body; 304 Stainless Steel
Seals: PTFE
Operating Temp -6 to 356
°F
(-20 TO 180 °C)
Pressure: 6 to 145 PSI
Coil: Class H, IP65, 20W, CE
Service: Air,
Liquid, Steam
Coil Power 13 to 20W
|
Download Catalog
2MSO120-500.pdf
|
| 69A |
2MSO150-1/2
|
$195.34 |
1/2" NPT
|
Cv=45
Orifice:15mm
|
| 69B |
2MSO200-3/4
|
$226.93 |
3/4" NPT
|
Cv=7.6
Orifice:20mm
|
| 69C |
2MSO250-1
|
$280.13 |
1"
NPT
|
Cv=12
Orifice:25mm
|
| 69D |
2MSO320-1 1/4
|
$381.55 |
1
1/4"
NPT
|
Cv=22
Orifice:320mm
|
| 69E |
2MSO400-1 1/2
|
$399.00 |
1 1/2"
NPT
|
Cv=30
Orifice:40mm
|
| 69F |
2MSO500-2
|
$599.33 |
2"
NPT
|
Cv=48
Orifice:50mm
|
| 73 |
2E100-3/8
|
$443.56 |
 |
3/8"
NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=4 Orifice:10mm
|
2 Way, Pilot Piston, Normally Closed
Body: Stainless Steel
Seals: PTFE
Operating Temp -40 to 356
°F
(-40 to180 °C)
Pressure: 87 to 1450 PSI;
Option: 87 to
2300 PSI;
Max. Pressure: 1450 PSI @ 72°F
Coil: Class H, IP65, 20-25W, CE
Service: Air,
Liquid, Steam
Coil Power 13 to 28W
|
Download Catalog
2E100.pdf
3D
PDF MODEL
3D
STEP MODEL
|
| 74 |
2E150-1/2
|
$553.01 |
1/2" NPT
|
Cv=9.2
Orifice:15mm
|
| 75 |
2E200-3/4
|
$664.77 |
3/4" NPT
|
Cv=16
Orifice:20mm
|
| 76 |
2E250-1
|
$735.05 |
1"
NPT
|
Cv=24
Orifice:25mm
|
| 77 |
2LS150-3/8
|
$147.47 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110AC
4 =220VAC
(50/60Hz)
|
Cv=4.8
|
2 Way, Direct Lift Piston
Normally Closed
Body: 304 Stainless Steel
Seals: PTFE
Media Temp. 23 to 356°F
Ambient
Temp. 23-110°F
Pressure:
0 to 120 PSI AC Coil
0 to 80 PSI
DC Coil
Option: 0 to 150 PSI
Coil: Class H, IP65
Service: Air, Liquid, Steam
Coil Power 30W
|
Download Catalog
2LS120-500.pdf
|
| 77A |
2LS150-1/2
|
$174.56 |
1/2" NPT
|
Cv=4.8
|
| 78 |
2LS200-3/4
|
$215.50 |
3/4" NPT
|
Cv=8.5
|
| 79 |
2LS250-1
|
$269.32 |
1"
NPT
|
Cv=14
|
| 80 |
2LS320-11/4
|
$353.50 |
1 1/4" NPT
|
Cv=20
|
| 81 |
2LS400-11/2
|
$391.37 |
1 1/2" NPT
|
Cv=31
|
| 82 |
2LS500-2
|
$565.25 |
2"
NPT
|
Cv=51
|
| 83 |
2D150-3/8
|
$71.93 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110AC
4 =220VAC
(50/60Hz)
|
Cv=2.2
Orifice=15mm
|
2 Way, Slow Closing Pilot Diaphragm
Normally Closed
(Option: Normally Open)
Body: Brass
Seals: NBR (Buna N); Option: Viton, EPDM
Media Temp. 14 to 176°F (14 to 266°F Viton)
Ambient
Temp. 23-110°F
Pressure: 4 to 175 PSI
Coil: Class H, IP65
Service:
Water, Air, Oil, Gas
Coil Power 12-20W
|
Download Catalog
2D150-500.pdf
|
| 83A |
2D150-1/2
|
$82.38 |
1/2" NPT
|
Cv=3.7
Orifice=15mm
|
| 83B |
2D200-3/4
|
$102.27 |
3/4" NPT
|
Cv=7
Orifice=20mm
|
| 83C |
2D250-1
|
$130.36 |
1"
NPT
|
Cv=11.1
Orifice=25mm
|
| 83D |
2D320-11/4
|
$207.45 |
1 1/4" NPT
|
Cv=14
Orifice=32mm
|
| 83E |
2D400-11/2
|
$269.47 |
1 1/2" NPT
|
Cv=24.5
Orifice=40mm
|
| 83F |
2D500-2
|
$346.91 |
2"
NPT
|
Cv=35
Orifice=50mm
|
| 84 |
2DS150-3/8
|
$92.50 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110AC
4 =220VAC
(50/60Hz)
|
Cv=2.2
Orifice=15mm
|
2 Way, Slow Closing Pilot Diaphragm
Normally Closed
(Option: Normally Open)
Body: 304 Stainless Steel (Option: 316SS)
Seals: NBR (Buna N); Option: Viton, EPDM
Media Temp. 14 to 176°F (14 to 266°F Viton)
Ambient
Temp. 23-110°F
Pressure: 4 to 175 PSI
Coil: Class H, IP65
Service:
Water, Air, Oil, Gas
Coil Power 12-20W
|
Download Catalog
2D150-500.pdf
|
| 84A |
2DS150-1/2
|
$94.59 |
1/2" NPT
|
Cv=3.7
Orifice=15mm
|
| 84B |
2DS200-3/4
|
$114.95 |
3/4" NPT
|
Cv=7
Orifice=20mm
|
| 84C |
2DS250-1
|
$163.93 |
1"
NPT
|
Cv=11.1
Orifice=25mm
|
| 84D |
2DS320-11/4
|
$244.40 |
1 1/4" NPT
|
Cv=14
Orifice=32mm
|
| 84E |
2DS400-11/2
|
$300.48 |
1 1/2" NPT
|
Cv=24.5
Orifice=40mm
|
| 84F |
2DS500-2
|
$392.30 |
2"
NPT
|
Cv=35
Orifice=50mm
|
| 85 |
2DS500F
|
$679.20 |
 |
2"
Flange
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110AC
4 =220VAC
(50/60Hz
|
Cv=48
Orifice:50mm
|
2 Way, Pilot Piston, Normally
Closed
Body; 304 Stainless Steel
Seals: NBR (BUNA N)
Operating Temp 23 to
176
°F
(-5 TO 80 °C)
Pressure: 6 to 175 PSI
Maximum Pressure: 175 PSI @ 72°F
Coil: Class H, IP65, 20W, CE
Service: Air,
Liquid
Coil Power 13 to 20W
|
Download Catalog
2DO500-1000.pdf
3D PDF MODEL |
| 85A |
2DS650F
|
$1,436.88 |
2 1/2" Flange
|
Cv=53
Orifice:65m
|
| 85B |
2DS800F
|
$1,654.59 |
3" Flange
|
Cv=82
Orifice:80mm
|
| 85C |
2DS1000F
|
$2,438.33 |
4" Flange
|
Cv=128
Orifice:100mm
|
| 86 |
2DSO500F
|
$714.08 |
|
2" Flange
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110AC
4 =220VAC
(50/60Hz
|
Cv=48
Orifice:50mm
|
2 Way, Pilot Piston, Normally
Open
Body; 304 Stainless Steel
Seals: NBR (BUNA N)
Operating Temp 23 to
176
°F
(-5 TO 80 °C)
Pressure: 6 to 120 PSI
Maximum Pressure: 120 PSI @ 72°F
Coil: Class H, IP65, 30W, CE
Service: Air,
Liquid
Coil Power 20 to 30W
|
Download Catalog
2DSO500-1000.pdf |
| 86A |
2DSO650F
|
$1,471.70 |
2 1/2" Flange
|
Cv=53
Orifice:65m
|
| 86B |
2DSO800F
|
$1,689.41 |
3" Flange
|
Cv=82
Orifice:80mm
|
| 86C |
2DSO1000F
|
$2,473.17 |
4" Flange
|
Cv=128
Orifice:100mm
|
| 87 |
2R150-3/8
|
$71.93 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=4.5
Orifice=13mm
|
2 Way, Pilot Diaphragm
Normally Closed
(Option: Normally Open)
Body: Brass
Seals: NBR (Buna N); Option: Viton, EPDM
Media Temp. 14 to 176°F (14 to 266°F Viton)
Ambient
Temp. 23-110°F
Pressure: 7 to 188 PSI
Coil: Class H, IP65
Service:
Water, Air, Oil, Gas
Coil Power 12-20W Option: Explosion Proof)
|
Download Catalog
2R150-500.pdf
|
| 87A |
2R150-1/2
|
$82.38 |
1/2" NPT
|
Cv=4.5
Orifice=15mm
|
| 87B |
2R200-3/4
|
$102.27 |
3/4" NPT
|
Cv=7.6
Orifice=20mm
|
| 87C |
2R250-1
|
$130.36 |
1"
NPT
|
Cv=12
Orifice=25mm
|
| 87D |
2R320-11/4
|
$207.45 |
1 1/4" NPT
|
Cv=22
Orifice=32mm
|
| 87E |
2R400-11/2
|
$269.47 |
1 1/2" NPT
|
Cv=30
Orifice=40mm
|
| 87F |
2R500-2
|
$346.91 |
2"
NPT
|
Cv=48
Orifice=50mm
|
| 88 |
2RS150-3/8
|
$101.07 |
 |
3/8" NPT
|
1 =12VDC
2 =24VDC
2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)
E=Explosion Proof Coil
|
Cv=4.5
Orifice=13mm
|
2 Way, Pilot Diaphragm
Normally Closed
(Option: Normally Open)
Body: 304 Stainless Steel (Option: 316SS)
Seals: NBR (Buna N); Option: Viton, EPDM
Media Temp. 14 to 176°F (14 to 266°F Viton)
Ambient
Temp. 23-110°F
Pressure: 7 to 188 PSI
Coil: Class H, IP65
Service:
Water, Air, Oil, Gas
Coil Power 12-20W Option: Explosion Proof)
|
Download Catalog
2R150-500.pdf
|
| 88A |
2RS150-1/2
|
$101.07 |
1/2" NPT
|
Cv=4.5
Orifice=15mm
|
| 88B |
2RS200-3/4
|
$114.95 |
3/4" NPT
|
Cv=7.6
Orifice=20mm
|
| 88C |
2RS250-1
|
$163.93 |
1"
NPT
|
Cv=12
Orifice=25mm
|
| 88D |
2RS320-11/4
|
$244.40 |
1 1/4" NPT
|
Cv=22
Orifice=32mm
|
| 88E |
2RS400-11/2
|
$300.48 |
1 1/2" NPT
|
Cv=30
Orifice=40mm
|
| 88F |
2RS500-2
|
$392.30 |
2"
NPT
|
Cv=48
Orifice=50mm
|
| |
|
|
|
|
|
|
|
|
|
| |
Part No.
|
List Price
|
Picture |
Voltage
|
Electrical
Connection
|
Power Rating
Options
|
Applications
|
Electrical Connections
|
| 84 |
200C
|
$9.13 |
 |
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz)
|
D=
DIN (with LED indicator and conduit connector)
|
3 W
4.8W
6.5W
|
For 2P, 2V,
3V & 4V
200-400 Series Solenoid Valves
|
To install coil:
Put the coil onto the armature tube of the valve.
Put the lock-washer and nut onto the armature tube. Hand tighten the
nut, then use a wrench to tighten the nut to a quarter turn; do not over-tighten the nut, it may
cause the armature tube to fail pre-maturely.
To connect DIN
coil:
1. Remove the Philip screw from the plastic housing and unplug it from
the DIN coil.
2. From the screw opening, use the screw to push the terminal block out
of the plastic housing.
3. Note the 1, 2 and ground markings on underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if
required connect ground to ground wire.
To connect
Grommet coil:
1. For DC Coil, connect one of the two wires to Positive, and the
other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other
wire to neutral wire.
|
| 85 |
200C
|
$9.13 |
 |
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz)
|
G=Grommet
|
3 W
4.8W
6.5W
8W
|
For 2P, 2V,
3V & 4V
200-400 Series Solenoid Valves
|
| 86 |
2W200C
|
$26.62 |
 |
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz)
|
D=
DIN (with conduit connector)
|
12W
14W
20W
|
For 2S/2W025-250,
3S/3W020-035 Series
Solenoid Valves
with DIN and 5/16" Strain Relief Connection
|
| 86A |
2W200C-2E
|
$396.11 |
 |
2=24VDC
4=220VAC
(50/60Hz) |
ATEX Explosion Proof Coil
DC=10W;
AC=9W
Ex II 2G Ex m II T4
II 2D IP65 T130C
Max. Media Temp.176°F
(180°C)
Ambient Temp -4 to 122°F (-20 to 50°C)
Grommet with 10 feet 3 Conductors Cable
For 2E100
to 250, 2S025 to 250, 2W025 to 250, 2MS120-500 Solenoid Valves
|
|
2W200C-4E
|
| 87 |
2W350C
|
$41.19 |
 |
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz)
|
D=
DIN (with conduit connector)
|
25-40W
|
For 2L170/300,
2LS250-500, 2SO/2WO350-500 Series
Solenoid Valves
with DIN and 5/16" Strain Relief Connection
|
| 88 |
2WO250C
|
$41.19 |
 |
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz)
|
D=
DIN (with conduit connector)
|
25-30W
|
For 2LS120-200,
2MS/2MSO120-500, 2P/2PO160-250, 2S/2W350-500, 2SO/2WO160-250 Series Solenoid Valves
with DIN and 5/16" Strain Relief Connection
|
| 89 |
2W200C-T
|
$28.80 |
 |
 |
ON/OFF Timer Switch
ON/OFF Adjustment Duration:
On 0.5 second to 10 seconds,
Off 0.5 to 45 minutes.
24-240V DC or AC 50/60HZ, 1A,
DIN43650A Connection, for 2W200C, 2W350C, 2WO coils
|
| 90 |
2W200C-T-D
|
$47.23 |
 |
24-240V DC or AC 50/60HZ, 1A,
|
DIGITAL ON/OFF Timer Switch
ON/OFF Adjustment Duration:
ON: 0.5 second to 10 seconds
OFF: 0.5 second to 45 minutes
Size: 88 X 48 x
21 (mm)
24-240V DC or AC 50/60HZ, 1A,
Termination: DIN43650A
Protection: IP65,
EN60529, for 2W200C, 2W350C, 2WO coils
|
| 91 |
2W200C-T-DH
|
$59.29 |
 |
110-220VAC
50/60HZ, 1A
|
PROGRAMMABLE DIGITAL ON/OFF Timer Switch
ON/OFF Single or Multi Cycles Adjustment Duration:
ON: 1 second to 99 hours
OFF: 1 second to 99 hours
Size: 88 X 48 x 21
(mm)
Termination: DIN43650A
Protection: IP65,
EN60529, for 2W200C, 2W350C, 2WO coils
DOWNLOAD: 2W200C-T-D.pdf
|
| 92 |

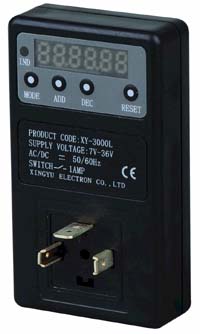

2W200C-T-DL
|
$59.29 |
7-36V
DC or AC, 3A
|
| 93 |
2W200C-PS-H
|
$11.41 |
 |
100-280VAC
50/60HZ, 1A
|
POWER SAVE DEVICE
High Power
Start Up Time: 0.3 - 2.5 seconds
Energy Save Rate: 15 to 85 %
Power Up Grade: 20 to 300% (AC only)
Size: 88 X 48 x 21 (mm)
Termination: DIN43650A
Protection: IP65,
EN60529, for 2W200C, 2W350C, 2WO coils
DOWNLOAD: 2W200C-PS.pdf
|
| 94 |
2W200C-PS-L
|
$11.41 |
12-36V
DC or AC, 2A
|
