Stainless Steel Fittings:
Complete line of all metal push in fittings

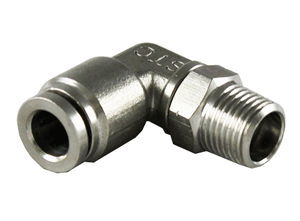

| 316 Stainless Steel Push In Fitting Selection Guide (click picture to get detail) | |||||||||||||
 |
 |
|
 |
 |
 |
 |
|||||||
| Branch Tee | Bulkhead Connector | Female Connector | Male Connector | Male Elbow | Run Tee | Tube Adaptor | |||||||
 |
 |
 |
 |
 |
 |
 |
|||||||
| Bulkhead Union | Elbow Union | Reduced Union | Straight Union | Tee Union | Tube Connector | Tube Reducer | |||||||
 |
 |
 |
|
||||||||||
| Cartridge Fitting | Hex Bushing | Plug In Elbow | Tee Union Reducer | ||||||||||
|
|
|
 |
|
|
|
||||||||
| BULKHEAD CONNECTOR | BRANCH TEE CONNECTOR SWIVEL | FEMALE CONNECTOR | MALE CONNECTOR | ELBOW CONNECTOR SWIVEL | RUN TEE CONNECTOR SWIVEL | ||||||||
|
Tube OD |
Pipe Size |
Part No. | Unit Price |
Part No. |
Unit Price |
Part No. |
Unit Price |
Part No. |
Unit Price |
Part No. |
Unit Price |
Part No. | Unit Price |
|
1/8 |
10-32UNF | BCS 1/8 10-32 | $20.63 | BTS 1/8 10-32 | $21.37 | FCS 1/8 10-32 | $8.87 | MCS 1/8 10-32 | $7.61 | MES 1/8 10-32 | $15.14 | RTS 1/8 10-32 | $21.37 |
|
1/8 |
NPT1/8 | BCS 1/8 N1/8 | $20.63 | BTS 1/8 N1/8 | $21.37 | FCS 1/8 N1/8 | $8.87 | MCS 1/8 N1/8 | $7.61 | MES 1/8 N1/8 | $15.14 | RTS 1/8 N1/8 | $21.37 |
|
1/8 |
NPT1/4 | BCS 1/8 N1/4 | $22.82 | BTS 1/8 N1/4 | $22.45 | FCS 1/8 N1/4 | $12.45 | MCS 1/8 N1/4 | $7.98 | MES 1/8 N1/4 | $18.18 | RTS 1/8 N1/4 | $22.45 |
|
5/32 |
10-32UNF | BCS 5/32 10-32 | $20.63 | BTS 5/32 10-32 | $21.37 | FCS 5/32 10-32 | $8.87 | MCS 5/32 10-32 | $7.61 | MES 5/32 10-32 | $15.13 | RTS 5/32 10-32 | $21.37 |
|
5/32 |
NPT1/8 | BCS 5/32 N1/8 | $20.63 | BTS 5/32 N1/8 | $21.37 | FCS 5/32 N1/8 | $8.87 | MCS 5/32 N1/8 | $7.61 | MES 5/32 N1/8 | $15.13 | RTS 5/32 N1/8 | $21.37 |
|
5/32 |
NPT1/4 | BCS 5/32 N1/4 | $22.82 | BTS 5/32 N1/4 | $23.56 | FCS 5/32 N1/4 | $11.85 | MCS 5/32 N1/4 | $7.61 | MES 5/32 N1/4 | $15.13 | RTS 5/32 N1/4 | $23.56 |
|
1/4 |
10-32UNF | BCS 1/4 10-32 | $23.40 | BTS 1/4 10-32 | $21.37 | FCS 1/4 10-32 | $8.87 | MCS 1/4 10-32 | $7.61 | MES 1/4 10-32 | $16.10 | RTS 1/4 10-32 | $21.37 |
|
1/4 |
NPT1/8 | BCS 1/4 N1/8 | $23.40 | BTS 1/4 N1/8 | $21.37 | FCS 1/4 N1/8 | $8.87 | MCS 1/4 N1/8 | $7.61 | MES 1/4 N1/8 | $16.11 | RTS 1/4 N1/8 | $21.37 |
|
1/4 |
NPT1/4 | BCS 1/4 N1/4 | $23.40 | BTS 1/4 N1/4 | $24.57 | FCS 1/4 N1/4 | $8.87 | MCS 1/4 N1/4 | $7.61 | MES 1/4 N1/4 | $17.41 | RTS 1/4 N1/4 | $24.57 |
|
1/4 |
NPT3/8 | BCS 1/4 N3/8 | $24.49 | BTS 1/4 N3/8 | $28.03 | FCS 1/4 N3/8 | $9.55 | MCS 1/4 N3/8 | $8.29 | MES 1/4 N3/8 | $18.11 | RTS 1/4 N3/8 | $28.03 |
|
5/16 |
NPT1/8 | BCS 5/16 N1/8 | $24.49 | BTS 5/16 N1/8 | $26.87 | FCS 5/16 N1/8 | $12.53 | MCS 5/16 N1/8 | $10.12 | MES 5/16 N1/8 | $18.43 | RTS 5/16 N1/8 | $26.87 |
|
5/16 |
NPT1/4 | BCS 5/16 N1/4 | $24.49 | BTS 5/16 N1/4 | $26.87 | FCS 5/16 N1/4 | $12.53 | MCS 5/16 N1/4 | $10.12 | MES 5/16 N1/4 | $19.02 | RTS 5/16 N1/4 | $26.87 |
|
5/16 |
NPT3/8 | BCS 5/16 N3/8 | $24.49 | BTS 5/16 N3/8 | $30.88 | FCS 5/16 N3/8 | $12.53 | MCS 5/16 N3/8 | $10.69 | MES 5/16 N3/8 | $19.45 | RTS 5/16 N3/8 | $30.88 |
|
5/16 |
NPT1/2 | BCS 5/16 N1/2 | $25.59 | BTS 5/16 N1/2 | $31.98 | FCS 5/16 N1/2 | $14.72 | MCS 5/16 N1/2 | $11.56 | MES 5/16 N1/2 | $23.46 | RTS 5/16 N1/2 | $32.70 |
|
3/8 |
NPT1/8 | BCS 3/8 N1/8 | $27.27 | BTS 3/8 N1/8 | $30.88 | FCS 3/8 N1/8 | $15.20 | MCS 3/8 N1/8 | $10.12 | MES 3/8 N1/8 | $20.15 | RTS 3/8 N1/8 | $30.88 |
|
3/8 |
NPT1/4 | BCS 3/8 N1/4 | $27.27 | BTS 3/8 N1/4 | $30.88 | FCS 3/8 N1/4 | $15.20 | MCS 3/8 N1/4 | $10.12 | MES 3/8 N1/4 | $20.15 | RTS 3/8 N1/4 | $30.88 |
|
3/8 |
NPT3/8 | BCS 3/8 N3/8 | $27.27 | BTS 3/8 N3/8 | $30.88 | FCS 3/8 N3/8 | $16.48 | MCS 3/8 N3/8 | $10.27 | MES 3/8 N3/8 | $20.91 | RTS 3/8 N3/8 | $30.88 |
|
3/8 |
NPT1/2 | BCS 3/8 N1/2 | $27.27 | BTS 3/8 N1/2 | $34.33 | FCS 3/8 N1/2 | $17.05 | MCS 3/8 N1/2 | $11.56 | MES 3/8 N1/2 | $23.95 | RTS 3/8 N1/2 | $34.33 |
|
1/2 |
NPT1/4 | BCS 1/2 N1/4 | $29.41 | BTS 1/2 N1/4 | $33.82 | FCS 1/2 N1/4 | $15.31 | MCS 1/2 N1/4 | $12.40 | MES 1/2 N1/4 | $25.71 | RTS 1/2 N1/4 | $33.82 |
|
1/2 |
NPT3/8 | BCS 1/2 N3/8 | $30.50 | BTS 1/2 N3/8 | $33.82 | FCS 1/2 N3/8 | $17.05 | MCS 1/2 N3/8 | $12.40 | MES 1/2 N3/8 | $25.71 | RTS 1/2 N3/8 | $33.82 |
|
1/2 |
NPT1/2 | BCS 1/2 N1/2 | $32.70 | BTS 1/2 N1/2 | $36.13 | FCS 1/2 N1/2 | $17.61 | MCS 1/2 N1/2 | $16.35 | MES 1/2 N1/2 | $29.27 | RTS 1/2 N1/2 | $36.13 |
|
4mm |
M5X0.8 | BCS 4 M5 | $20.63 | BTS 4 M5 | $21.37 | FCS 4 M5 | $8.87 | MCS 4 M5 | $7.61 | MES 4 M5 | $15.13 | RTS 4 M5 | $21.37 |
|
4mm |
R1/8 | BCS 4 R1/8 | $20.63 | BTS 4 R1/8 | $21.37 | FCS 4 R1/8 | $8.87 | MCS 4 R1/8 | $7.61 | MES 4 R1/8 | $15.13 | RTS 4 R1/8 | $21.37 |
|
4mm |
R1/4 | BCS 4 R1/4 | $20.63 | BTS 4 R1/4 | $21.37 | FCS 4 R1/4 | $8.87 | MCS 4 R1/4 | $8.76 | MES 4 R1/4 | $15.13 | RTS 4 R1/4 | $21.37 |
|
6mm |
M5X0.8 | BCS 6 M5 | $23.40 | BTS 6 M5 | $21.37 | FCS 6 M5 | $8.87 | MCS 6 M5 | $8.76 | MES 6 M5 | $17.41 | RTS 6 M5 | $21.37 |
|
6mm |
R1/8 | BCS 6 R1/8 | $23.40 | BTS 6 R1/8 | $21.37 | FCS 6 R1/8 | $8.87 | MCS 6 R1/8 | $8.76 | MES 6 R1/8 | $16.11 | RTS 6 R1/8 | $21.37 |
|
6mm |
R1/4 | BCS 6 R1/4 | $23.40 | BTS 6 R1/4 | $24.57 | FCS 6 R1/4 | $8.87 | MCS 6 R1/4 | $8.76 | MES 6 R1/4 | $17.41 | RTS 6 R1/4 | $24.57 |
|
8mm |
R1/4 | BCS 8 R1/4 | $24.49 | BTS 8 R1/4 | $26.87 | FCS 8 R1/4 | $11.38 | MCS 8 R1/4 | $10.12 | MES 8 R1/4 | $19.33 | RTS 8 R1/4 | $26.87 |
|
8mm |
R3/8 | BCS 8 R3/8 | $24.49 | BTS 8 R3/8 | $29.18 | FCS 8 R3/8 | $12.53 | MCS 8 R3/8 | $10.69 | MES 8 R3/8 | $19.45 | RTS 8 R3/8 | $29.18 |
|
10mm |
R1/4 | BCS 10 R1/4 | $27.27 | BTS 10 R1/4 | $30.88 | FCS 10 R1/4 | $13.68 | MCS 10 R1/4 | $10.12 | MES 10 R1/4 | $20.15 | RTS 10 R1/4 | $30.88 |
|
10mm |
R3/8 | BCS 10 R3/8 | $27.27 | BTS 10 R3/8 | $30.88 | FCS 10 R3/8 | $14.61 | MCS 10 R3/8 | $10.27 | MES 10 R3/8 | $20.91 | RTS 10 R3/8 | $30.88 |
|
12mm |
R3/8 | BCS 12 R3/8 | $30.50 | BTS 12 R3/8 | $33.82 | FCS 12 R3/8 | $15.31 | MCS 12 R3/8 | $12.40 | MES 12 R3/8 | $25.71 | RTS 12 R3/8 | $33.82 |
|
12mm |
R1/2 | BCS 12 R1/2 | $30.50 | BTS 12 R1/2 | $36.13 | FCS 12 R1/2 | $17.61 | MCS 12 R1/2 | $16.35 | MES 12 R1/2 | $29.27 | RTS 12 R1/2 | $36.13 |
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|||||||||
| Size | Reduced Union | Bulkhead Union | Elbow Union | Straight Union | Tube Connector | Tube Reducer | TEE Union | ||||||||
| Tube OD | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | |
| 1/8" | RUS 5/32-1/8 | $14.53 | BUS 1/8 | $14.53 | EUS 1/8 | $17.42 | SUS 1/8 | $10.95 | TCS 1/8 | $2.88 | TRS 1/8-5/32 | $10.95 | TUS 1/8 | $21.37 | |
| 5/32" | RUS 1/4-5/32 | $17.11 | BUS 5/32 | $14.53 | EUS 5/32 | $17.41 | SUS 5/32 | $10.95 | TCS 5/32 | $2.88 | TRS 5/32-1/4 | $10.95 | TUS 5/32 | $21.37 | |
| 1/4” | RUS 3/8-1/4 | $23.27 | BUS 1/4 | $17.11 | EUS 1/4 | $20.00 | SUS 1/4 | $10.95 | TCS 1/4 | $2.88 | TRS 1/4-3/8 | $10.95 | TUS 1/4 | $24.57 | |
| 5/16" | RUS 3/8-5/16 | $23.27 | BUS 5/16 | $21.90 | EUS 5/16 | $20.91 | SUS 5/16 | $11.93 | TCS 5/16 | $2.88 | TRS 5/16-3/8 | $11.93 | TUS 5/16 | $27.74 | |
| 3/8" | RUS 1/2-3/8 | $30.03 | BUS 3/8 | $23.27 | EUS 3/8 | $22.81 | SUS 3/8 | $12.93 | TCS 3/8 | $3.46 | TRS 3/8-1/2 | $12.93 | TUS 3/8 | $30.88 | |
| 1/2" | BUS 1/2 | $30.03 | EUS 1/2 | $26.24 | SUS 1/2 | $15.66 | TCS 1/2 | $4.03 | TUS 1/2 | $36.13 | |||||
| 4MM | RUS 6-4 | $20.53 | BUS 4 | $14.53 | EUS 4 | $17.41 | SUS 4 | $9.81 | TCS 4 | $2.88 | TRS 4-6 | $9.81 | TUS 4 | $21.37 | |
| 6MM | RUS 8-6 | $21.87 | BUS 6 | $20.53 | EUS 6 | $20.00 | SUS 6 | $10.95 | TCS 6 | $2.88 | TRS 6-8 | $10.95 | TUS 6 | $24.57 | |
| 8MM | RUS 10-8 | $23.27 | BUS 8 | $21.90 | EUS 8 | $20.91 | SUS 8 | $11.93 | TCS 8 | $2.88 | TRS 8-10 | $11.93 | TUS 8 | $27.74 | |
| 10MM | RUS 12-10 | $30.03 | BUS 10 | $23.27 | EUS 10 | $22.81 | SUS 10 | $12.93 | TCS 10 | $3.46 | TRS 10-12 | $12.93 | TUS 10 | $30.88 | |
| 12MM | BUS 12 | $30.03 | EUS 12 | $26.24 | SUS 12 | $15.66 | TCS 12 | $4.03 | TUS 12 | $36.13 | |||||
|
|
|
|
|
|
|||||||||||
| Tube Adaptor | Cartridge Fitting | Plug In Elbow | Hex Bushing | TEE Union Reducer | |||||||||||
|
Tube OD |
Pipe Size |
Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | ||||
|
1/8 |
10-32UNF | TAS 1/8 10-32 | $5.30 | CFS 1/8 | $9.66 | PES 1/8 | $14.53 | HBS MN1/4-FN1/8 | $2.92 | ||||||
|
1/8 |
NPT1/8 | TAS 1/8 N1/8 | $5.30 | CFS 5/32 | $8.67 | PES 5/32 | $14.53 | HBS MN3/8-FN1/8 | $3.66 | ||||||
|
5/32 |
10-32UNF | TAS 5/32 10-32 | $5.30 | CFS 1/4 | $7.46 | PES 1/4 | $17.11 | HBS MN3/8-FN1/4 | $4.38 | TUS 3/8-1/4 | $30.88 | ||||
|
5/32 |
NPT1/8 | TAS 5/32 N1/8 | $5.30 | CFS 5/16 | $8.12 | PES 5/16 | $21.87 | HBS MN1/2-FN1/4 | $4.38 | ||||||
|
5/32 |
NPT1/4 | TAS 5/32 N1/4 | $5.30 | CFS 3/8 | $8.56 | PES 3/8 | $23.27 | ||||||||
|
1/4 |
NPT1/8 | TAS 1/4 N1/8 | $5.30 | CFS 1/2 | $9.11 | PES 1/2 | $30.03 | ||||||||
|
1/4 |
NPT1/4 | TAS 1/4 N1/4 | $5.30 | ||||||||||||
|
|
|||||||||||||||
|
Size |
 |
 |
|
 |
 |
 |
|||||||
|
|
In-Line Panel Mount Flow Control | In-Line Flow Control | Shuttle Valve | Quick Exhaust Valve | Flow Control Silencer | Brass Silencer | |||||||
|
NPT Thread |
Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | Part No. | Unit Price | |
| 10-32 | BSL 10-32 | $1.10 | |||||||||||
| 1/8" | ASC N1/8 | $14.83 | AS N1/8 | $9.52 | ST N1/8 | $15.74 | QE N1/8 | $15.74 | BESL N1/8 | $4.03 | BSL N1/8 | $1.10 | |
| 1/4" | ASC N1/4 | $14.83 | AS N1/4 | $9.52 | ST N1/4 | $17.79 | QE N1/4 | $17.79 | BESL N1/4 | $5.71 | BSL N1/4 | $2.13 | |
| 3/8" | ASC N3/8 | $17.11 | AS N3/8 | $11.41 | ST N3/8 | $17.79 | QE N3/8 | $17.79 | BESL N3/8 | $8.76 | BSL N3/8 | $3.23 | |
| 1/2" | ASC N1/2 | $20.53 | AS N1/2 | $17.86 | ST N1/2 | $29.05 | QE N1/2 | $20.27 | BESL N1/2 | $12.04 | BSL N1/2 | $4.96 | |
