Miniature Chrome-Plated Brass Ball Valves



Model: T400

Model: T400  SPECIFICATIONS
Reduced Port

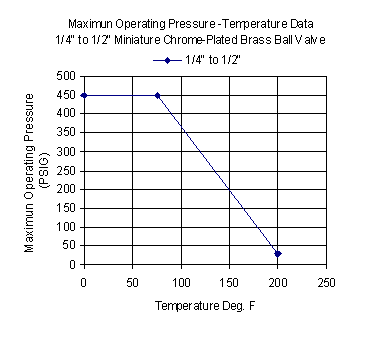

Maximum Operating Pressure:
1/4” to 1/2” 450 PSIG @ 75ºF WOG*
Temperature  Range: -0 to 200 ºF*
End Connections: NPT Threaded (Female)
Stem is blowout-proof
Chrome-plated brass body, brass stem, chrome-plated ball, seats and seal are Teflon, handle is made of  die-cast metal

Unit = inch
