Model IV, OV, PV, UV Valve Dimensions:Dimensions for Reference Use Only: Imperial fittings in Inch, Metric fittings in mm, U.S.O.
|

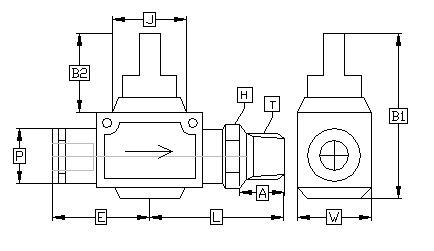

Vented Shut Off Inlet Valve
|
|
MODEL |
D (mm) |
T |
A |
C |
E |
H |
L |
P |
|
IV 01-06 |
6 |
R1/8 |
0.31 |
0.63 |
0.99 |
0.55 |
1.30 |
0.49 |
|
IV 01-08 |
8 |
R1/8 |
0.31 |
0.73 |
1.09 |
0.55 |
1.30 |
0.57 |
|
IV 02-06 |
6 |
R1/4 |
0.43 |
0.63 |
0.99 |
0.55 |
1.46 |
0.49 |
|
IV 02-08 |
8 |
R1/4 |
0.43 |
0.73 |
1.09 |
0.55 |
1.46 |
0.57 |
|
IV 02-10 |
10 |
R1/4 |
0.43 |
0.83 |
1.24 |
0.67 |
1.61 |
0.69 |
|
IV 02-12 |
12 |
R1/4 |
0.43 |
0.89 |
1.35 |
0.67 |
1.61 |
0.83 |
|
IV 03-06 |
6 |
R3/8 |
0.47 |
0.63 |
0.99 |
0.67 |
1.50 |
0.49 |
|
IV 03-08 |
8 |
R3/8 |
0.47 |
0.73 |
1.09 |
0.67 |
1.46 |
0.57 |
|
IV 03-10 |
10 |
R3/8 |
0.47 |
0.83 |
1.24 |
0.67 |
1.65 |
0.69 |
|
IV 03-12 |
12 |
R3/8 |
0.47 |
0.89 |
1.35 |
0.67 |
1.65 |
0.83 |
|
IV 04-10 |
10 |
R1/2 |
0.59 |
0.83 |
1.24 |
0.83 |
1.76 |
0.69 |
|
IV 04-12 |
12 |
R1/2 |
0.59 |
0.89 |
1.35 |
0.83 |
1.76 |
0.83 |
| |
|
|
|
|
|
|
|
|
|

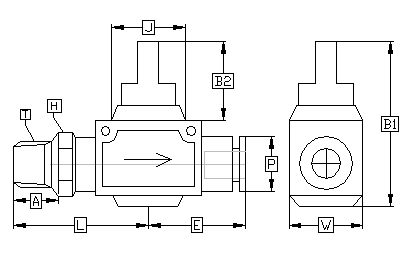

Vented Shut Off Outlet Valve
|
|
MODEL |
D (mm) |
T |
A |
C |
E |
H |
L |
P |
|
OV 06-01 |
6 |
R1/8 |
0.31 |
0.63 |
0.99 |
0.55 |
1.30 |
0.49 |
|
OV 06-02 |
6 |
R1/4 |
0.43 |
0.63 |
0.99 |
0.55 |
1.46 |
0.49 |
|
OV 06-03 |
6 |
R3/8 |
0.47 |
0.63 |
0.99 |
0.67 |
1.50 |
0.49 |
|
OV 08-01 |
8 |
R1/8 |
0.31 |
0.73 |
1.09 |
0.55 |
1.30 |
0.57 |
|
OV 08-02 |
8 |
R1/4 |
0.43 |
0.73 |
1.09 |
0.55 |
1.46 |
0.57 |
|
OV 08-03 |
8 |
R3/8 |
0.47 |
0.73 |
1.09 |
0.67 |
1.50 |
0.57 |
|
OV 10-02 |
10 |
R1/4 |
0.43 |
0.83 |
1.24 |
0.67 |
1.61 |
0.69 |
|
OV 10-03 |
10 |
R3/8 |
0.47 |
0.83 |
1.24 |
0.67 |
1.65 |
0.69 |
|
OV 10-04 |
10 |
R1/2 |
0.59 |
0.83 |
1.24 |
0.83 |
1.76 |
0.69 |
|
OV12-02 |
12 |
R1/4 |
0.43 |
0.89 |
1.35 |
0.67 |
1.61 |
0.83 |
|
OV 12-03 |
12 |
R3/8 |
0.47 |
0.89 |
1.35 |
0.67 |
1.65 |
0.83 |
|
OV 12-04 |
12 |
R1/2 |
0.59 |
0.89 |
1.35 |
0.83 |
1.76 |
0.83 |
| |
|
|
|
|
|
|
|
|
|

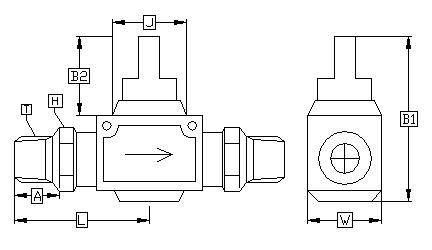

Vented Shut Off Plug Valve
|
|
MODEL |
T1 |
T2 |
A1 |
A2 |
H1 |
H2 |
L1 |
L2 |
|
PV 01-01 |
R1/8 |
R1/8 |
0.31 |
0.31 |
0.55 |
0.55 |
1.30 |
1.30 |
|
PV 02-01 |
R1/4 |
R1/8 |
0.43 |
0.31 |
0.55 |
0.55 |
1.46 |
1.30 |
|
PV 02-02 |
R1/4 |
R1/4 |
0.43 |
0.43 |
0.55 |
0.55 |
1.46 |
1.46 |
|
PV 03-02 |
R3/8 |
R1/4 |
0.47 |
0.43 |
0.67 |
0.67 |
1.65 |
1.61 |
|
PV 03-03 |
R3/8 |
R3/8 |
0.47 |
0.47 |
0.67 |
0.67 |
1.65 |
1.65 |
|
PV 04-03 |
R1/2 |
R3/8 |
0.59 |
0.47 |
0.83 |
0.67 |
1.77 |
1.65 |
|
PV 04-04 |
R1/2 |
R1/2 |
0.59 |
0.59 |
0.83 |
0.83 |
1.77 |
1.77 |
| |
|
|
|
|
|
|
|
|
|

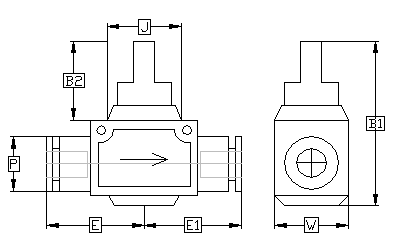

Vented Shut Off Union Valve
|
|
MODEL |
D1 (mm) |
D2 (mm) |
C1 |
C2 |
E |
E1 |
ØP1 |
ØP2 |
|
UV 06-06 |
6 |
6 |
0.67 |
0.67 |
0.99 |
1.00 |
0.49 |
0.49 |
|
UV 08-06 |
8 |
6 |
0.73 |
0.67 |
1.09 |
0.99 |
0.57 |
0.49 |
|
UV 08-08 |
8 |
8 |
0.73 |
0.73 |
1.09 |
1.09 |
0.57 |
0.57 |
|
UV 10-10 |
10 |
10 |
0.83 |
0.83 |
1.24 |
1.24 |
0.69 |
0.69 |
|
UV 12-10 |
12 |
10 |
0.89 |
0.83 |
1.35 |
1.24 |
0.83 |
0.69 |
|
UV 12-12 |
12 |
12 |
0.89 |
0.89 |
1.35 |
1.35 |
0.83 |
0.83 |
